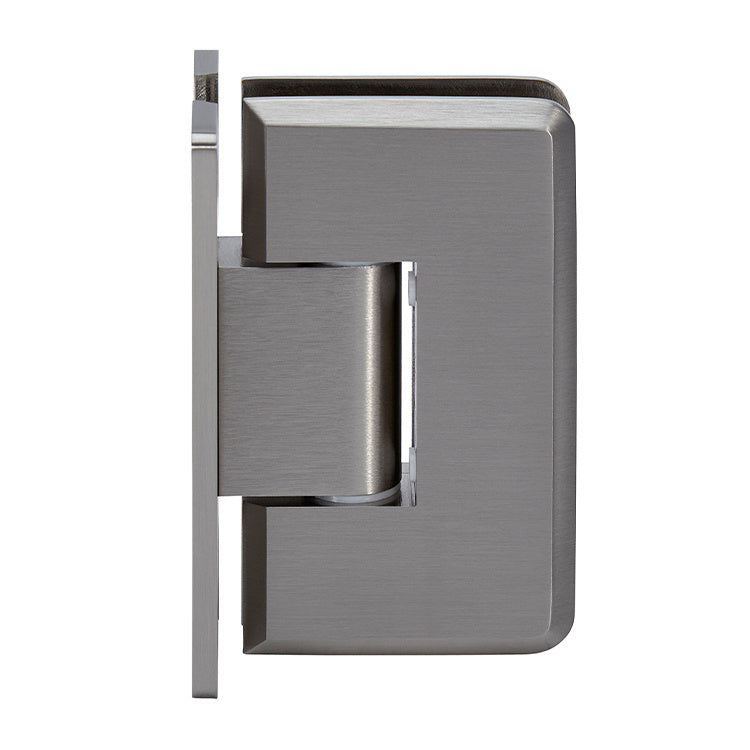

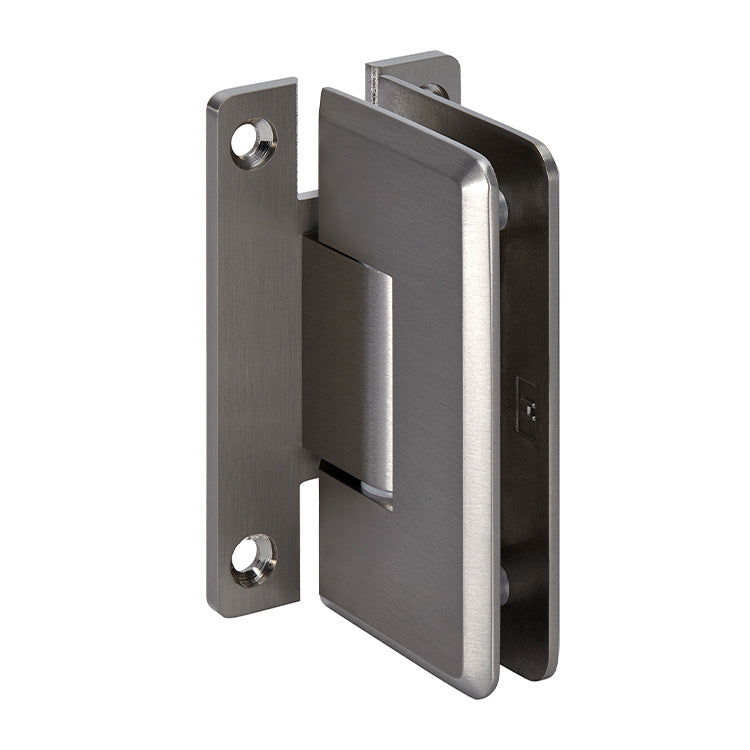

Wall to Glass 90° Full Back Plate Cologne 037 Series Wall Mount 'H' Hinge, Heavy Duty, C0L037

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5 Degree Pivot Pin

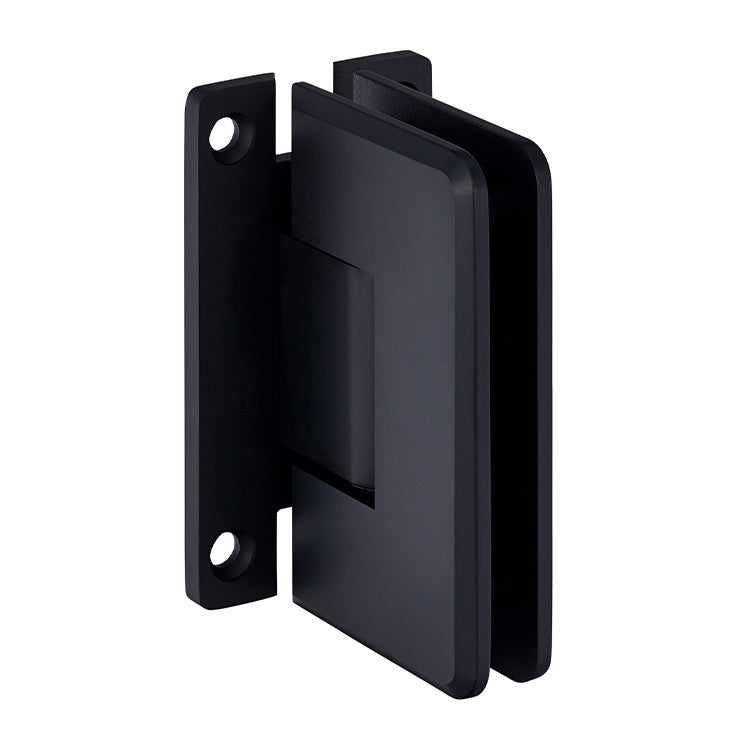

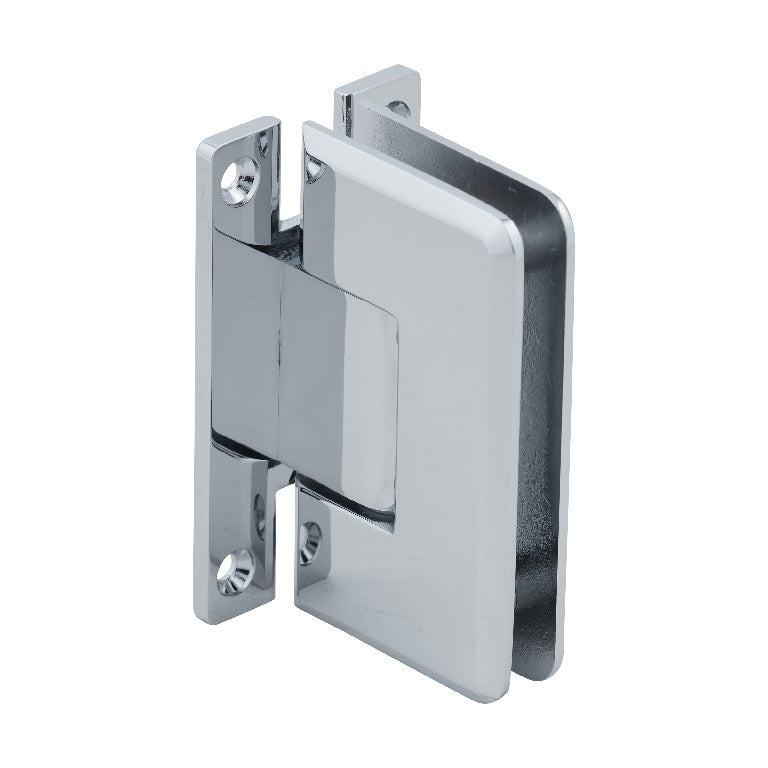

• Available in Several Beautiful Finishes
• 3 Year Warranty

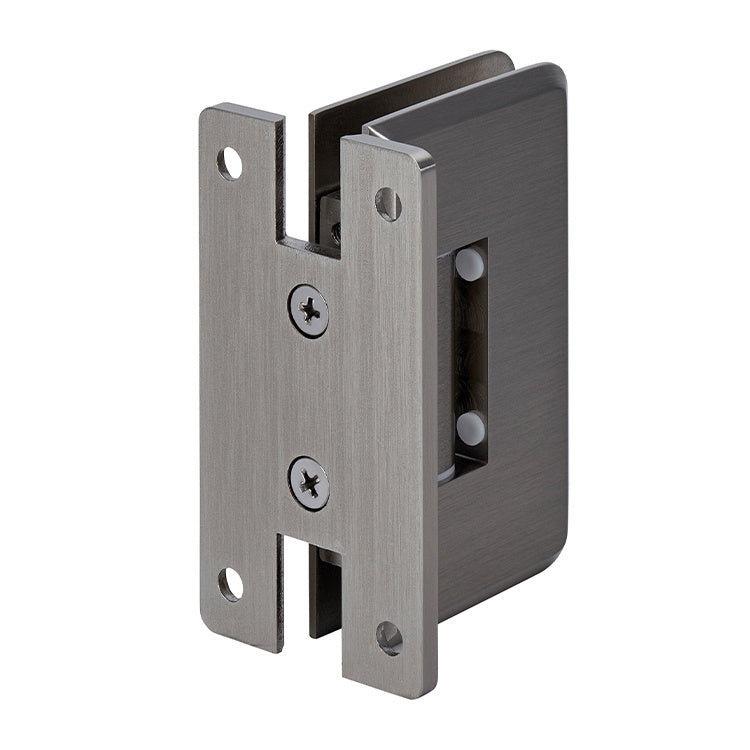

• Wall Mount 'H' Back Plate Standard Model
• Use Monolithic Tempered Glass

These sleek hinges combine the functionality of traditional hinges with an eye-catching design. Featuring elegant radius corners and beveled edges, they're perfect for elevating the look of any space, especially on wider and heavier doors where traditional hinges may not suffice.

Two Mounting Versatility Options:

These versatile hinges cater to different installation preferences. Choose between:

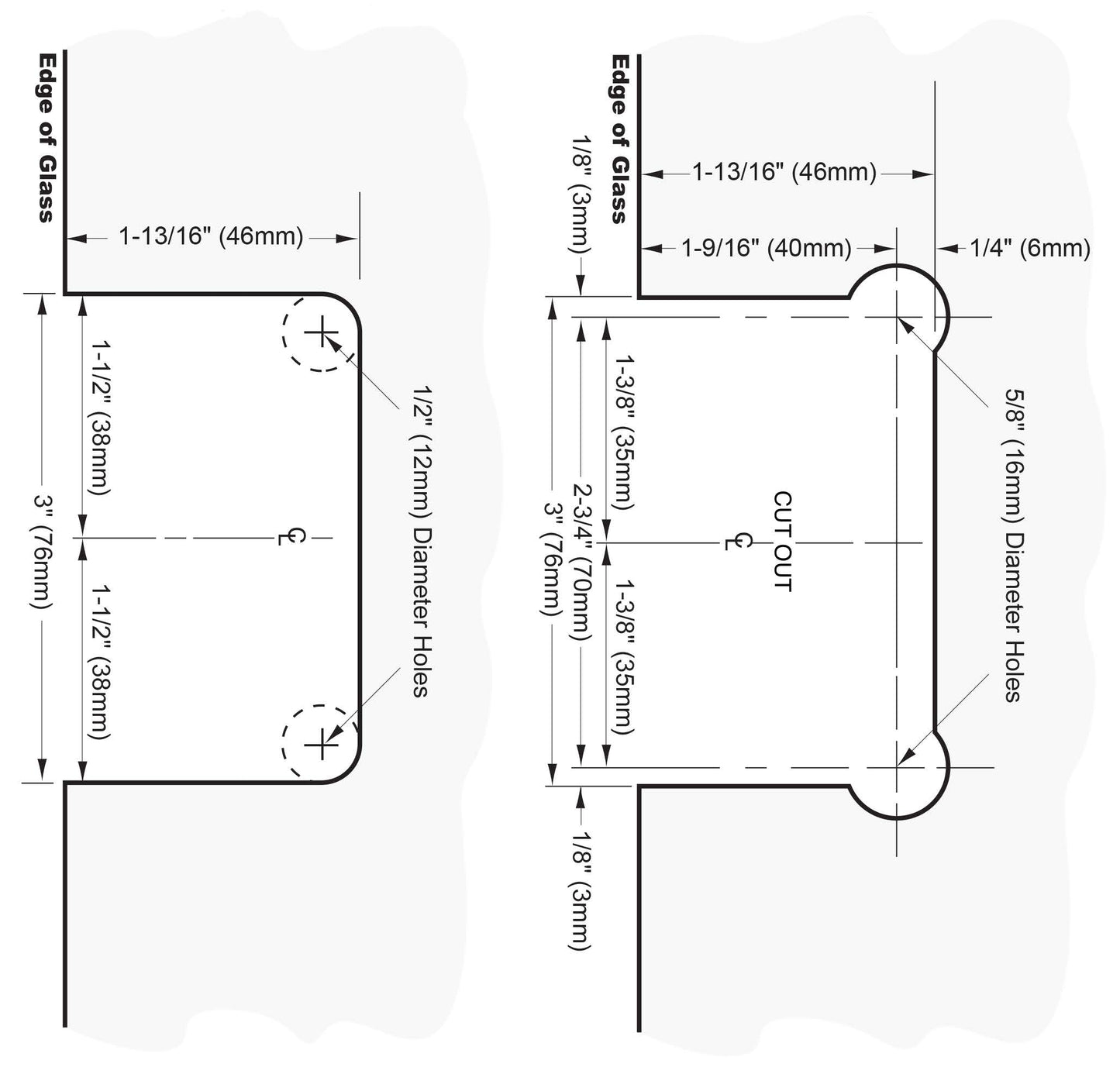

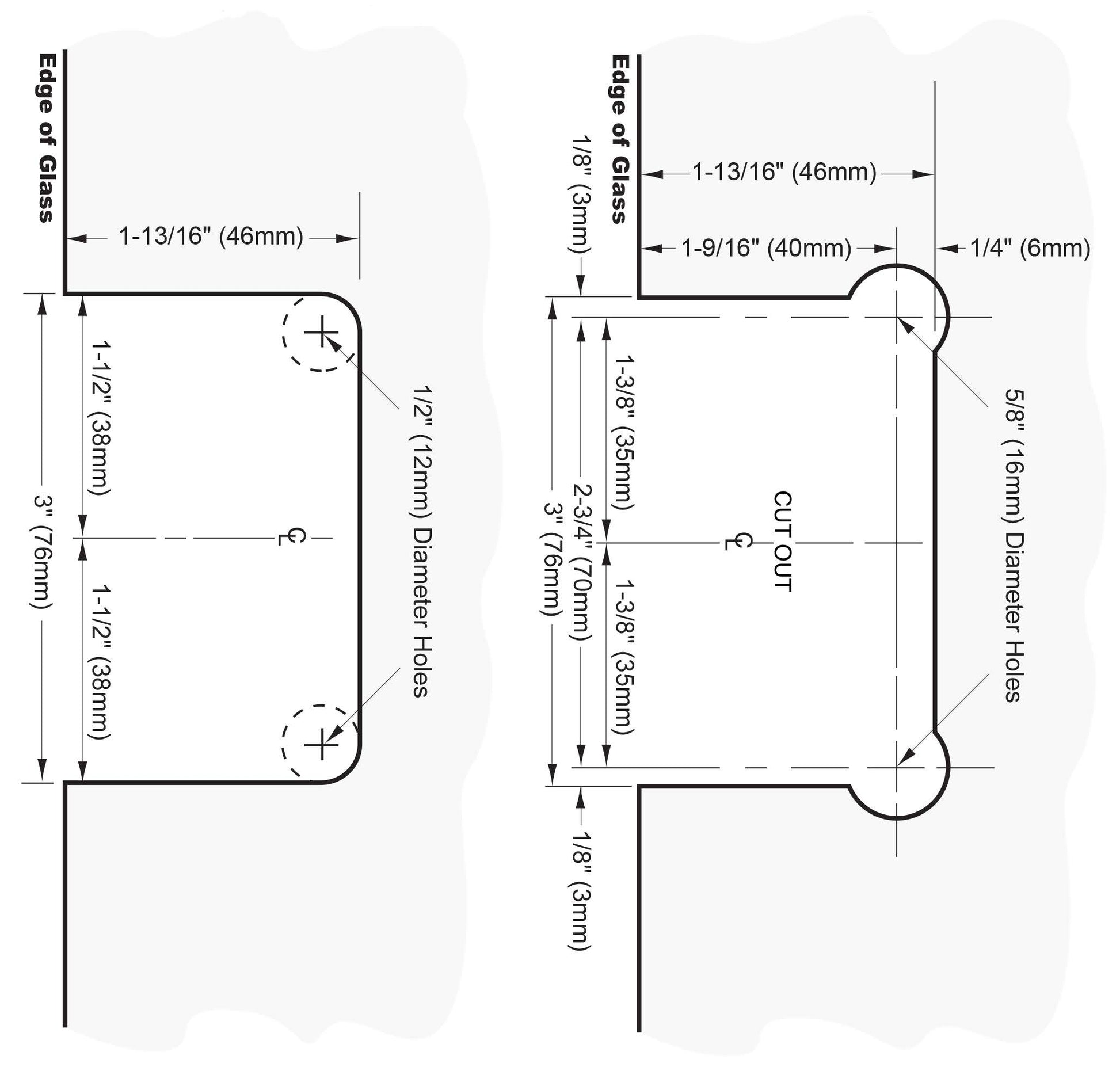

• Enhanced Security: Leave the two strategically placed steel pins in place for optimal stability and compatibility with the exclusive "mouse-ears" cut-out design, ensuring maximum door support.

• Increased Adjustability: Remove the steel pins to unlock enhanced adjustability and compatibility with both the brand's own rectangular, square cornered cut-out and, in some cases, similar offerings from other manufacturers.

Effortless Door Support:

No matter your chosen mounting option, these hinges provide exceptional support for heavier doors, ensuring smooth and effortless operation for years to come.

Modern Elegance:

The refined lines and subtle details of these hinges add a touch of sophistication to any door, making them ideal for a variety of applications, from contemporary homes to stylish commercial spaces.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 20º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
